ZHTripod Report 302
REPORT plane plate
Product Description

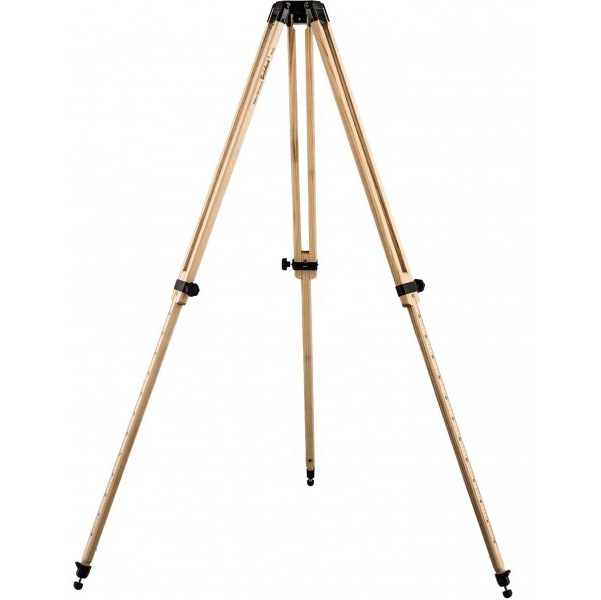

The tripod Report 302 is equipped with the module insert 0 and is thus the simplest and cheapest tripod version.The support area has a diameter of 60 mm and is equipped with a fixed fastening screw (size to be selected).
In combination with our tripod heads, it can be used for various applications and is particularly suitable for near-ground-level work.

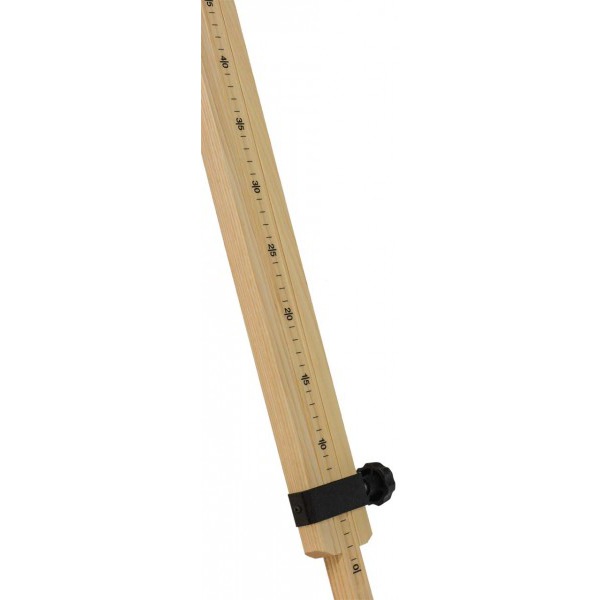

Single tripod leg extension.
The light magnesium mounting head serves as module basis for 14 different inserts. The module insert can be changed at all times using a special wrench (included in the delivery of the changing module). The fixation in the cone ensures a positive-locking, clearance-free connection of the components.
Thanks to the stop system, it is possible to set angles of spread at approx. 20°, 40°, 60°, 80° and 100° by means of a wing catch. The stop system is designed in such a way that the specified loads of the tripods are also guaranteed at a maximum inclination of the tripod legs.
- Weight: 2,80 kg = 6.17 lbs.
- Packed length: 85 cm = 33 inches
- Minimum height: 4 cm = 2 inches
- Maximum height: 139 cm = 55 inches
- Load tolerance: 12,00 kg = 26.46 lbs.
- Vibration damping: very good
Item number: 12002
Availability: in stock
