FRTripod Report 242/K
REPORT levelling column
Product Description

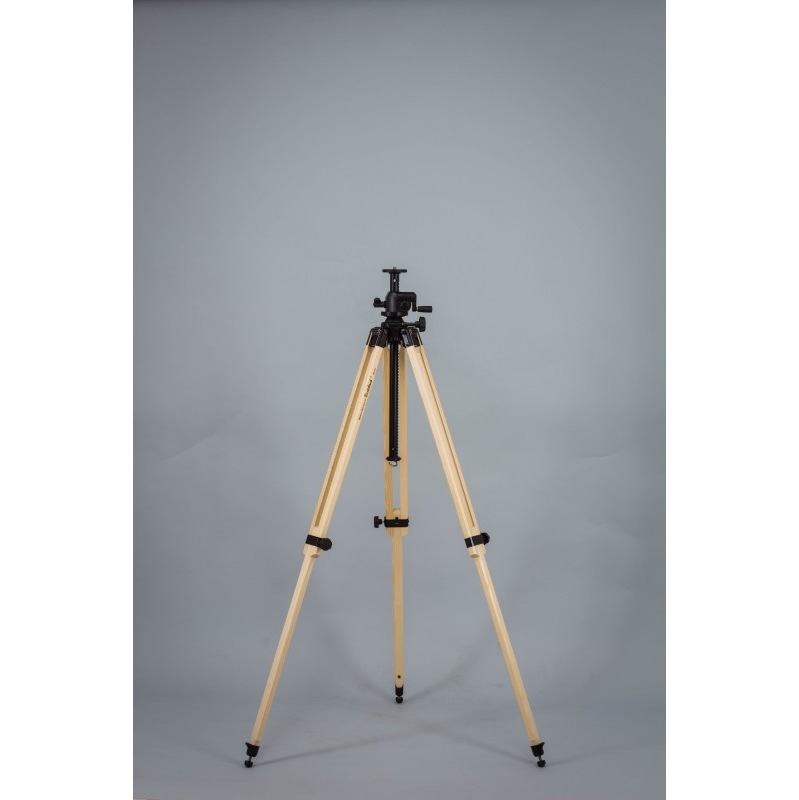

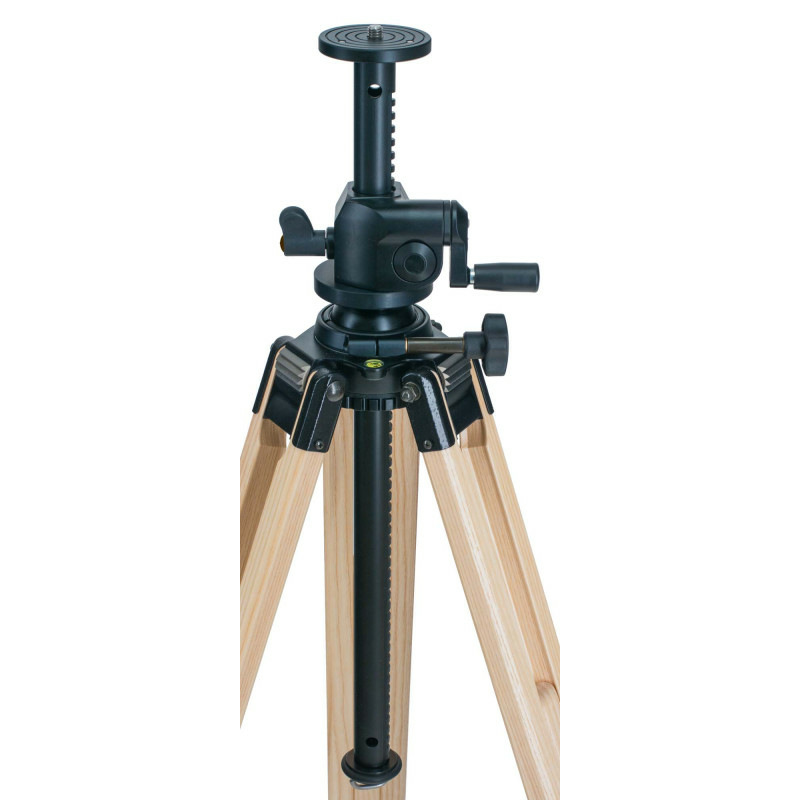

The tripod Report 242/K is equipped with the module insert 4K, i.e. with a crank centre column which has a length of 50 cm and a diameter of 25 mm, made of precision-drawn light-metal tubing, and a levelling ball. The centre column is additionally equipped with a rotating panorama plate. By means of the centre column, the levelling ball can be tilted by 30° in all directions. The support plate made of aluminium has a diameter of 68 mm and is equipped with a fixed fastening screw (size to be selected) as well as three locking screws which secure the mounted system against unintentional loosening. The spirit level ensures a quick and precise adjustment.Single tripod leg extension.
The specified maximum height applies if the centre column with a length of 50 cm is extended.
The light magnesium mounting head serves as module basis for 14 different inserts. The module insert can be changed at all times using a special wrench (included in the delivery of the changing module). The fixation in the cone ensures a positive-locking, clearance-free connection of the components.
Thanks to the stop system, it is possible to set angles of spread at approx. 20°, 40°, 60°, 80° and 100° by means of a wing catch. The stop system is designed in such a way that the specified loads of the tripods are also guaranteed at a maximum inclination of the tripod legs.
- Weight: 3,20 kg = 7.05 lbs.
- Packed length: 83 cm = 33 inches
- Minimum height: 57 cm = 22 inches
- Maximum height: 167 cm = 66 inches
- Load tolerance: 12,00 kg = 26.46 lbs.
- Vibration damping: very good
Item number: 12041K
Availability: in stock
