TV mount VESA bracket for tripods

UNI System Miscellaneous Accessories New Products for other brands

Product Description

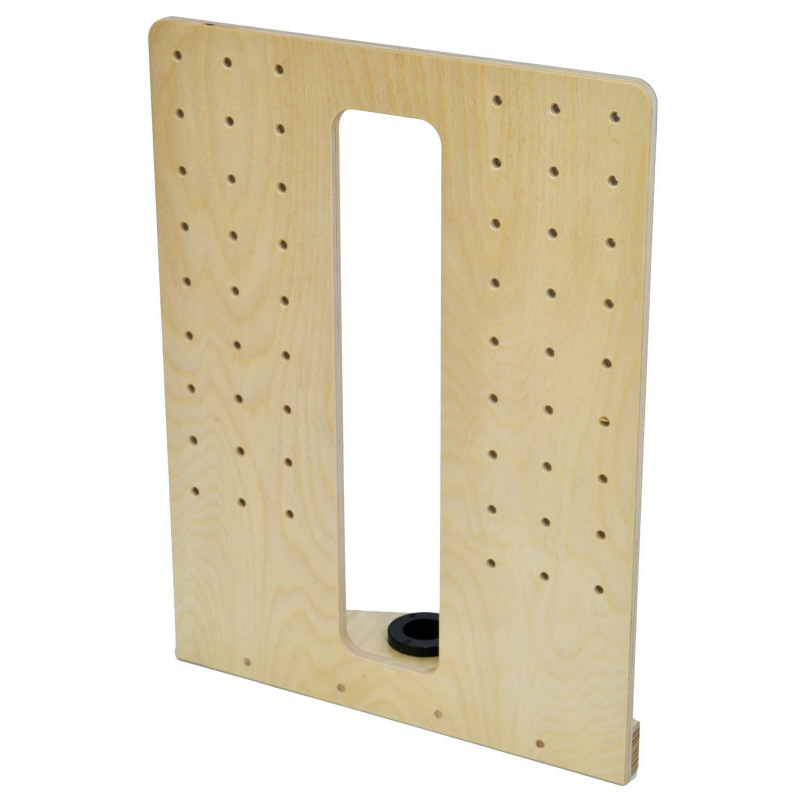

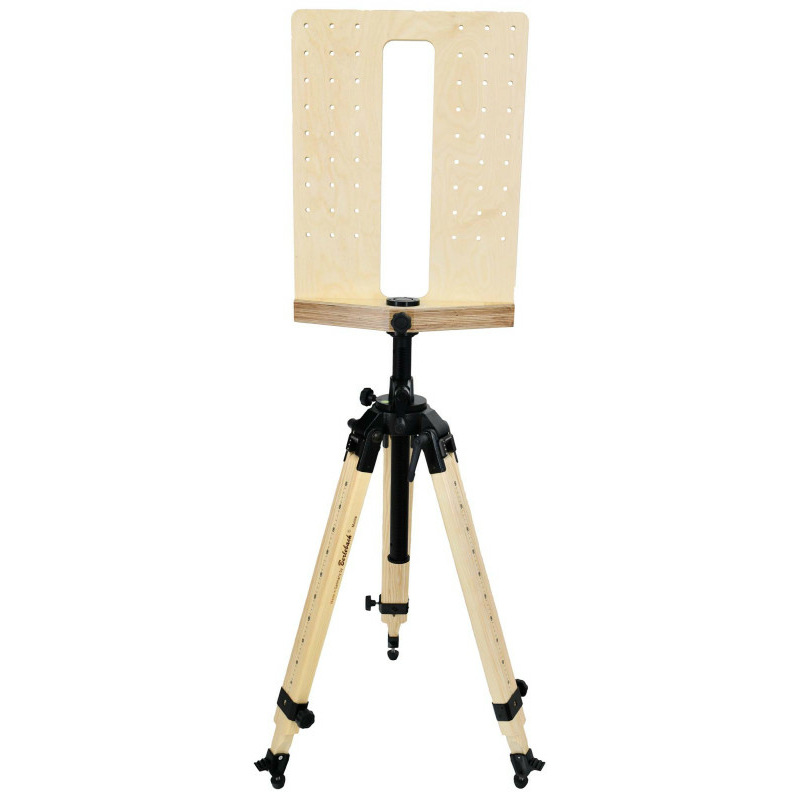

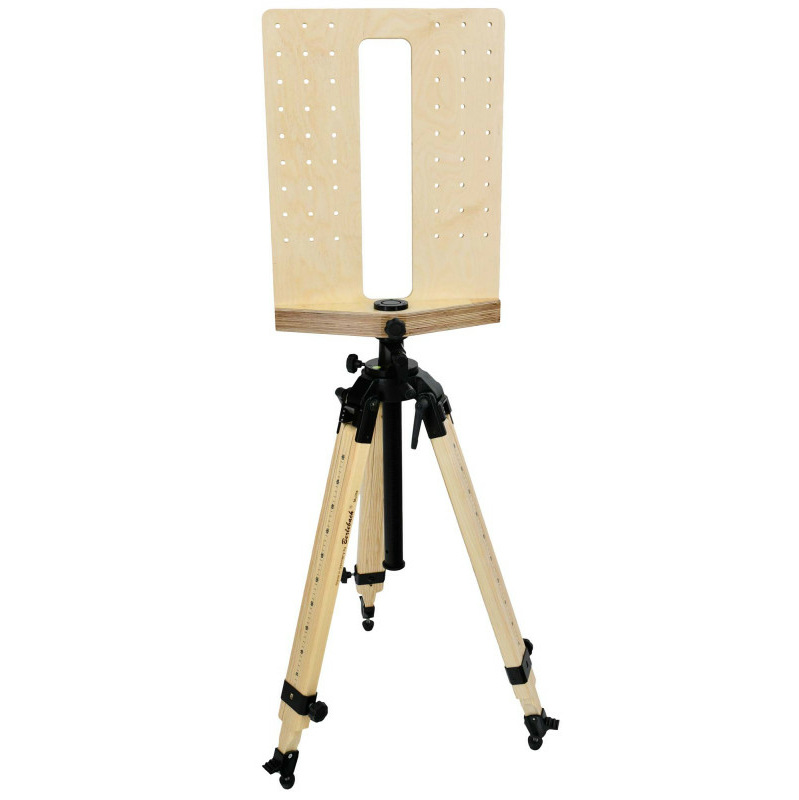

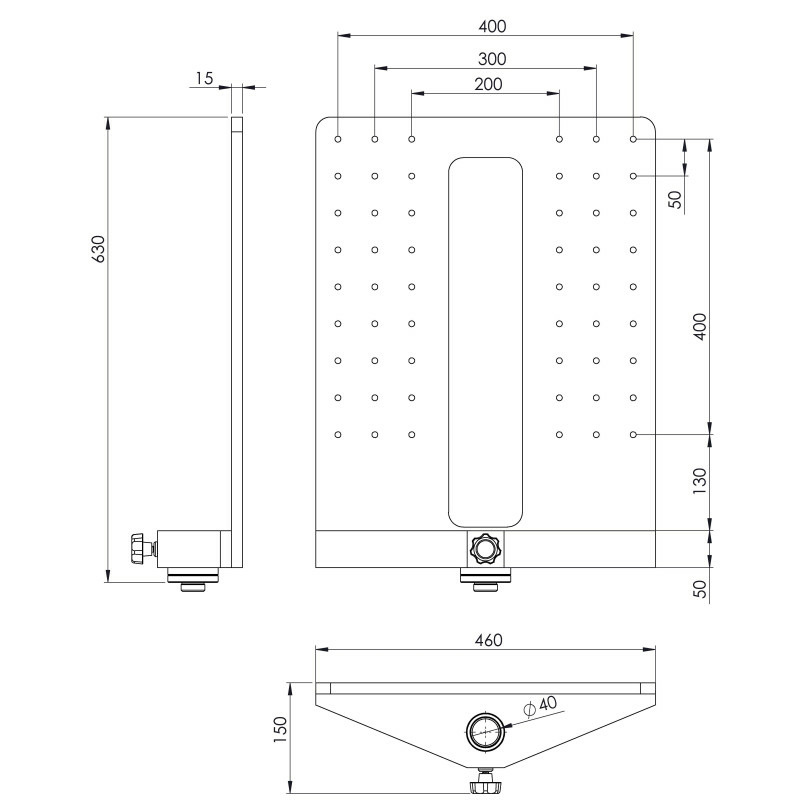

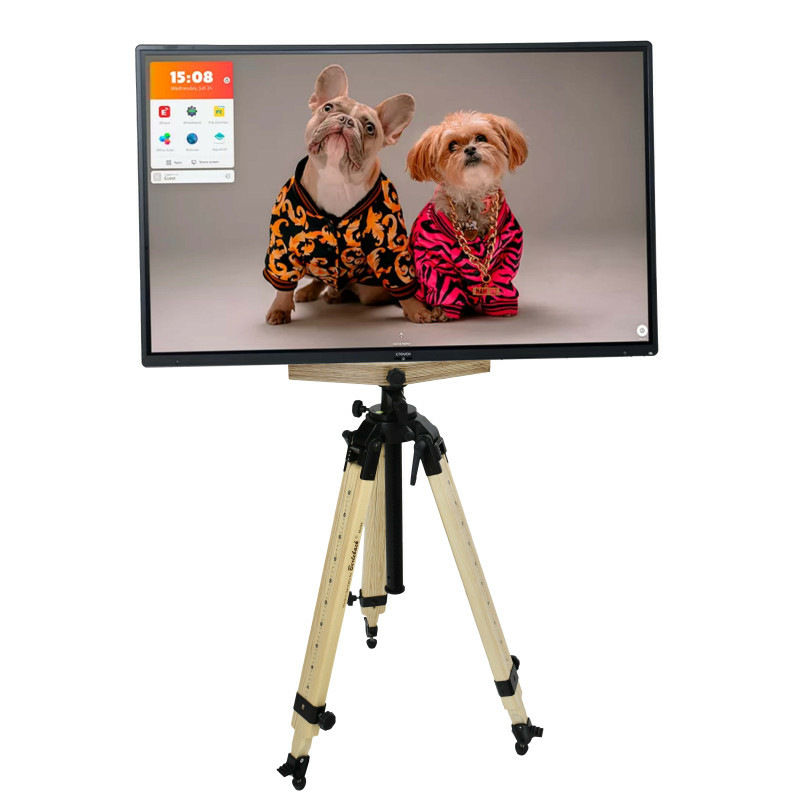

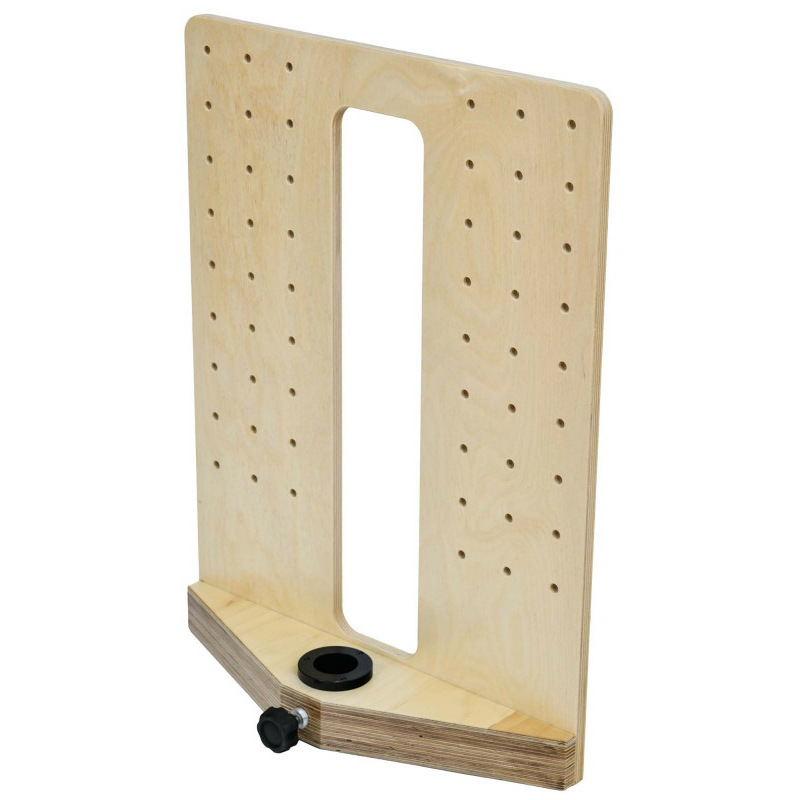

This TV mount is suitable for all screens, touch panels, and televisions within the VESA pattern up to 400 x 400 mm. When used with a UNI tripod with a crank column, quick and secure height adjustment is ensured. Please select the appropriate tripod combination in the options menu. The tripods are available with an adjustable leg stop (C version) or with a fixed spread safety at an angle of 23° with an additional shelf between the tripod legs. The bracket is mounted on a pin with a diameter of 40 mm and a length of 60 mm, which is securely attached to the desired Berlebach tripod. If ordered without the corresponding tripod, mounting on a suitable tube with a stop pin is possible.

Please choose in the options menu:

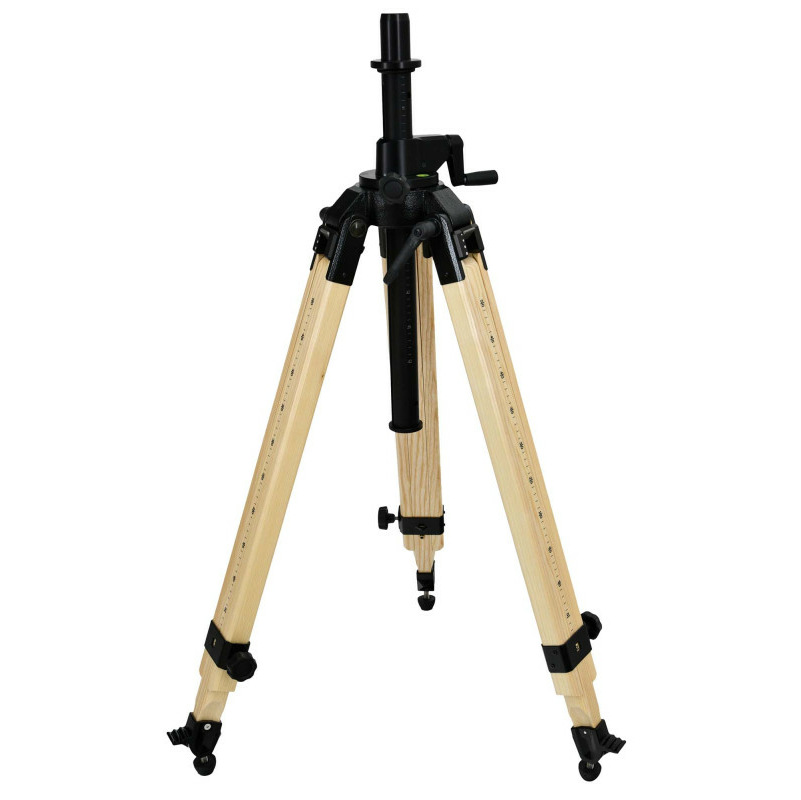

UNI 9C Tripod Transport length 71 cm, Minimum height 53 cm, Maximum height 129 cm Weight 5.9 kg

UNI 19C Tripod Transport length 97 cm, Minimum height 53 cm, Maximum height 179 cm Weight 7.1 kg

UNI 29C Tripod Transport length 116 cm, Minimum height 53 cm, Maximum height 210 cm Weight 8.2 kg

Load capacity up to 15 kg.
  • Weight: 4,50 kg = 9.92 lbs.

Item number: 51250

Availability: in stock

Customize

Price: 288,00 €
(circa 332.96 $)
